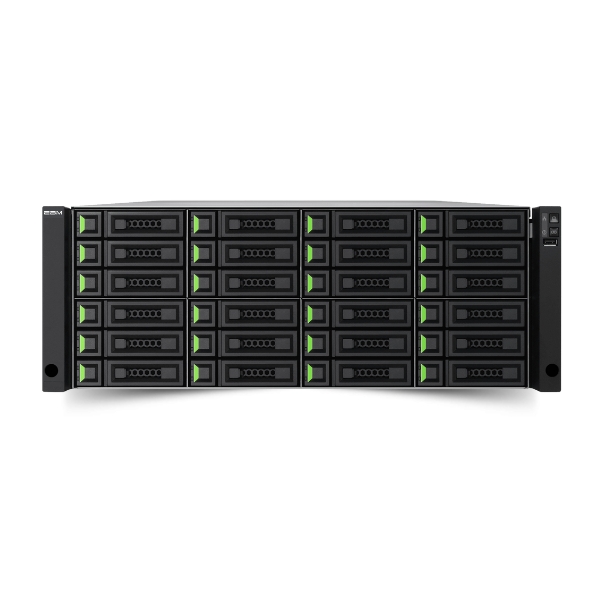

IQS624

IQS624

Additional information

Key Features

High Performance & Efficiency
  • Powered by Intel® Xeon® 64-bit quad-core processors
  • Hybrid flash design with SSD caching (optional) & auto-tiering (optional)
  • Thin provisioning with space reclamation for optimized capacity usage
  • QoS (Quality of Service) to prioritize critical workloads
Enquire Now

Model Number

IQS624

Architecture

Single / Dual active-active controller

Processor

Intel® Xeon® 64-bit 4-core per controller

Memory

Each controller includes 4 DIMM slots, pre-installed with 8 GB DDR4 ECC memory,expandable
up to 256 GB per controller (512 GB total per system)

Front Panel & LED

Enclosure Power Button & Status LED, Enclosure Access LED, Disk Drive Status & Power LED,UID
(Unique Identifier) Button & LED, USB Port

Rear Panel & LED

Power Supply Unit, 12 Gb/s SAS Wide Port, 10 GbE iSCSI (SFP+) Port, Management Port,
Host Card Slot 1 & Slot 2 (Optional Part), Service Port, Console Port, USB Port,
Reset to Factory Default Button, Buzzer Mute Button.
Master / Slave LED, Controller Status LED, Dirty Cache LED, UID LED

Drive Bays &
Max Internal Capacity

Hot Swappable Drive
Bays 3.5″/2.5″ Slot x 24

Compatible
Drive Type

  • 3.5″/2.5″ SAS, NL-SAS, SED HDD;
  • 2.5″ SAS/SATA/SED SSD;
  • 3.5″/2.5″ SATA HDD (SATA HDD for single-controller only)

Max Drive Bays &
Max Capacity with
Expansion Units

Max Drive Bays 504
and Max Capacity
11,088TB

Management Port

1GbE RJ45 LAN Port (onboard per controller)

Onboard Connectivity

10GbE SFP+ 4 ports (per controller)

PCle Expansion

(Gen3 x8 Slot) x 2

PCle Expansion
Slot Options

10GbE RJ45 (2/4 ports per slot), 25GbE SFP28 (2/4 ports per slot), 16Gb FC SFP+ (2/4 ports per slot),
32Gb FC SFP28 (2 ports per slot)

Expansion &
External Port

2 x 12Gb/s SAS Wide Port (onboard per controller)

Storage OS

InfiniShield

RAID Typе

0/1/3/5/6/10/30/50/60/5EE/6EE/50EE/60EE/N-way mirror

Storage Efficiency

Thin Provisioning

Software Acceleration

SSD cache (option) / Auto tiering (option)

Data Protection

Snapshot / Local volume clone

Remote Replication

Asynchronous (built-in) / Synchronous (option)

Security

HTTPS / SSH / iSCSICHAP / ISE & SED

Management

Web UI / Serial console / RESTful API / S.E.S./LCM

Memory Protection

Cache-to-Flash (Super capacitor Module + Flash Module) (option)

System Cooling

4 FANS

Power Supply Unit

850W x2(80 PLUS Platinum)

Gross Weight

Kg: 28.3

Dimensions (H x W x D)

mm: 170.3 x 438 x 515

Certification

BIS, ROHS compliant

Warranty

  • System: 3 years
  • Super capacitor Module: 1 year

Enterprise Reliability & Availability

  • Dual active-active controllers with seamless failover/failback
  • Built for 99.9999% availability with fully redundant, hot-swappable controllers,
    power & cooling modules
  • Non-disruptive firmware and hardware upgrades
  • Predictive drive health monitoring with early alerts
  • Cache-to-flash protection ensures in-flight data safety during unexpected power loss
  •  Multipath I/O and load balancing support (MPIO, MC/S, Trunking, and LACP)
  •  24/7 operation designed for mission-critical workloads

Flexible Connectivity & Scalability

  • Industry-leading Ethernet and Fibre Channel high-speed connectivity
  • Built-in 10GbE SFP+, expandable to 24 host ports with flexible iSCSI/Fibre
    Channel options
  •  Scales to over 12 PB raw capacity for growing data needs
  •  Online expansion and single-to-dual controller field upgrade

Data Security & Access Control

  • Support for Self-Encrypting Drives (SEDs)
  • iSCSI Force Field to protect against malicious network attacks
  •  CHAP & mutual CHAP authentication / iSCSI-3 PR
    (Persistent Reservation for l/O fencing)
  •  Encrypted HTTPS communication for secure management

Data Protection & Disaster Recovery

  •  Flexible RAID support: 0/1/3/5/6/10/30/50/60/5EE/6EE/50EE/60EE/N-way mirror
  • Snapshots with recycle bin for fast restores
  •  Local clones with direct read/write access to snapshot data
  • Local & remote block-level replication for DR readiness
  •  Synchronous block-level replication for zero data-loss protection

Smart & Intuitive Management (InfiniShield OS)

  • 5-minute deployment with an intuitive GUI
  • Real-time monitoring & integrated reporting
  • Group/batch operations for multi-volume setup
  •  Easy control via web GUI, serial console, or RESTful API, plus integrated SES and
    LCM for streamlined mai

Versatile Use Cases

  • Virtualization-ready (VMware, Hyper-V, Citrix, KVM certified)
  • High-throughput media & video production
  •  Enterprise backup & disaster recovery infrastructure
  • Large-scale surveillance deployments
  •  Data consolidation for SMBs and enterprises

InfiniStor 600

Download Datasheet
