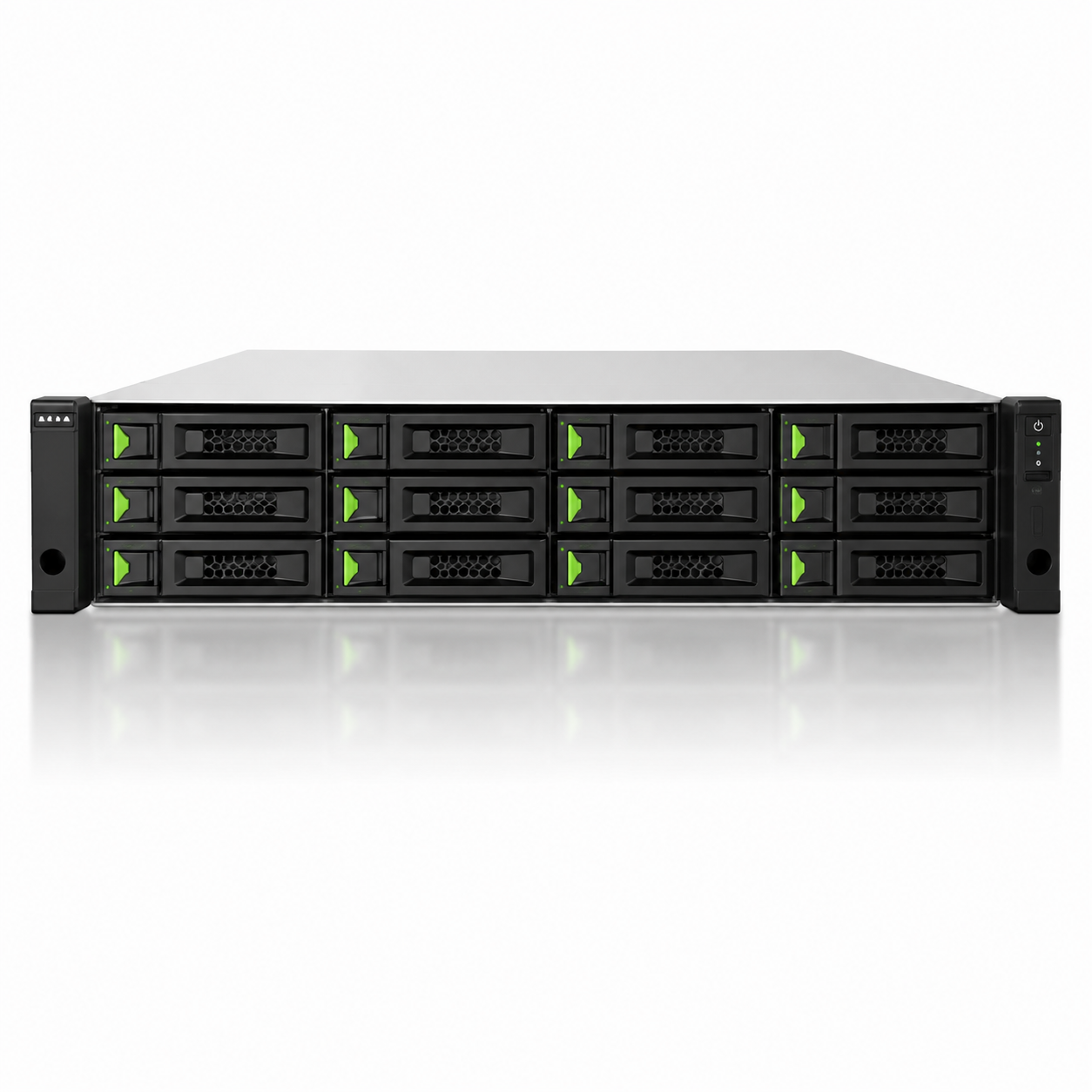

IQS812

IQS812

IQS812

Additional information

Performance & Efficiency

  • 800 Series next-generation architecture designed for diverse, high-performance workloads
  • Optimized for mission-critical data centers, virtualization, containerized applications, and media workflows
  • Advanced Storage QoS (Quality of Service) for predictable performance of critical workloads
  • Thin provisioning with space reclamation to maximize storage utilization
Enquire Now
Model Number
IQS812
Architecture
Single / Dual active-active controller
Processor
Intel® Xeon® 64-bit 8-core per controller (4-core option also available)
Memory
Each controller includes 4 DIMM slots, pre-installed with 8 GB DDR4 ECC memory,expandable up to 256 GB per controller (512 GB total per system)
Front Panel & LED
Enclosure Power Button & Status LED, Enclosure Access LED, Disk Drive Status & Power LED,UID (Unique Identifier) Button & LED, USB Port
Rear Panel & LED
Power Supply Unit, 12 Gb/s SAS Wide Port, 10 GbE iSCSI (SFP+) Port, Management Port, Host Card Slot 1 & Slot 2 (Optional Part), Service Port, Console Port, USB Port, Reset to Factory Default Button, Buzzer Mute Button. Master / Slave LED, Controller Status LED, Dirty Cache LED, UID LED
Drive Bays & Max Internal Capacity
Hot Swappable Drive Bays 3.5″/2.5″ Slot x 12
Compatible Drive Type
3.5″/2.5″ SAS, NL-SAS, SED HDD; 2.5″ SAS/SATA/SED SSD; 3.5″/2.5″ SATA HDD (SATA HDD for single-controller only)
Max Drive Bays & Max Capacity with Expansion Units
Max Drive Bays 492 and Max Capacity 10,824TB
Management Port
1GbE RJ45 LAN Port (onboard per controller)
Onboard Connectivity
10GbE SFP+ 4 ports (per controller)
PCle Expansion
(Gen3 x8 Slot) x 2
PCle Expansion Slot Options
10GbE RJ45 (2/4 ports per slot), 25GbE SFP28 (2/4 ports per slot), 16Gb FC SFP+ (2/4 ports per slot), 32Gb FC SFP28 (2 ports per slot)
Expansion & External Port
2 x 12Gb/s SAS Wide Port (onboard per controller)
Storage OS
InfiniShield
RAID Type
0/1/3/5/6/10/30/50/60/5EE/6EE/50EE/60EE/N-way mirror
Storage Efficiency
Thin Provisioning
Software Acceleration
SSD cache (option) / Auto tiering (option)
Data Protection
Snapshot / Local volume clone
Storage Efficiency
Thin provisioning with space reclamation
Remote Replication
Asynchronous (built-in) / Synchronous (option)
Security
ISE & SED drive support,SSH, Secured Web (HTTPS), iSCSI CHAP & mutual CHAP authentication, iSCSI Force Field to protect from mutant network attack
Management
Web UI / Serial console / RESTful API / S.E.S./LCM
Memory Protection
Cache-to-Flash (Super capacitor Module + Flash Module) (option)
System Cooling
4 FANS
Power Supply Unit
850W x2(80 PLUS Platinum)
Gross Weight
Kg: 18.8
Dimensions (H x W x D)
mm: 88 x 438 x 515
Certification
BIS, RoHS compliant
Warranty
System: 3 years; Super capacitor Module: 1 year

Performance & Efficiency

  • 800 Series next-generation architecture designed for diverse, high-performance workloads
  • Optimized for mission-critical data centers, virtualization, containerized applications, and media workflows
  • Advanced Storage QoS (Quality of Service) for predictable performance of critical workloads
  • Thin provisioning with space reclamation to maximize storage utilization

Simplified Management

  • InfiniShield storage management system with an intuitive web-based GUI
  • Rapid deployment with ready-to-use configuration in minutes
  • Real-time system monitoring with integrated reporting
  • Automatic load balancing to improve overall drive utilization
  • Group and batch operations for simplified multi-volume management
  • Seamless cross-platform replication within the InfiniStor family

Enterprise Reliability & Availability

  • Dual active-active controller architecture with seamless failover and failback
  • Designed for up to 99.9999% system availability
  • Fully redundant hardware components including controllers, power supplies, and cooling fans
  • Non-disruptive firmware upgrades ensuring continuous data access
  • Predictive drive health monitoring with proactive alerts
  • Cache-to-flash protection to preserve in-flight data during unexpected power loss
  • Optional SSD cache and auto-tiering support
  • 3-year limited warranty for enterprise-grade reliability

Flexible Expansion & Connectivity

  • Built-in 8 × 10GbE SFP+ host ports per system (dual controller), expandable up to 24 host ports
  • Flexible host connectivity options including iSCSI, Fibre Channel (16G/32G), 25GbE, and SAS expansion
  • Scalable architecture supporting up to 546 drives and 16.7 PB raw capacity
  • Wake-on-SAS support for remote power control of expansion enclosures to reduce energy consumption

Data Protection & Availability Services

  • Point-in-time snapshots with rapid restore capability and recycle bin support
  • Local and remote replication with asynchronous and optional synchronous mode
  • Comprehensive RAID support: 0/1/3/5/6/10/30/50/60/5EE/6EE/500E/600E
  • Local volume cloning with instant access for testing and recovery operations

Security & Access Control

  • Secure management access using HTTPS and SSH
  • iSCSI authentication support using CHAP
  • Role-based access control (RBAC) for administrative operations
  • Hardware-based AES at-rest encryption with support for Self-Encrypting Drives (SED)
  • Authentication Key (AK)-based protection to prevent unauthorized access to encrypted drives
  • Secure RESTful API for remote management and automation

Supported Use Cases

  • Server virtualization and private cloud infrastructure
  • Enterprise backup and disaster recovery
  • High-throughput media and content production
  • Large-scale surveillance storage
  • Centralized data consolidation for SMBs and enterprises
