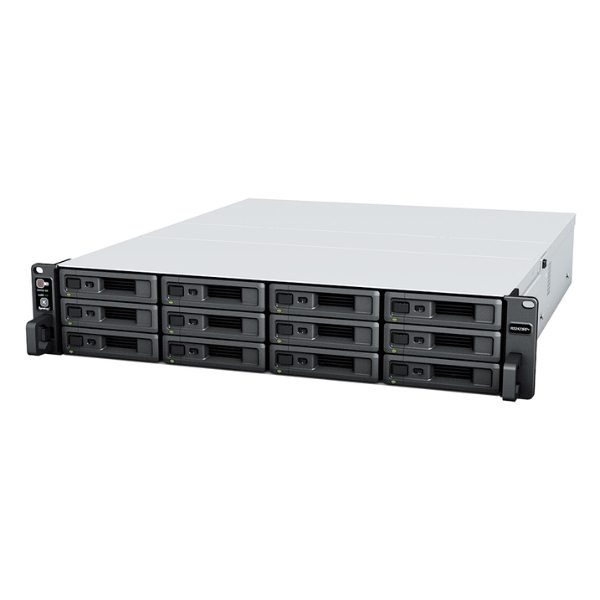

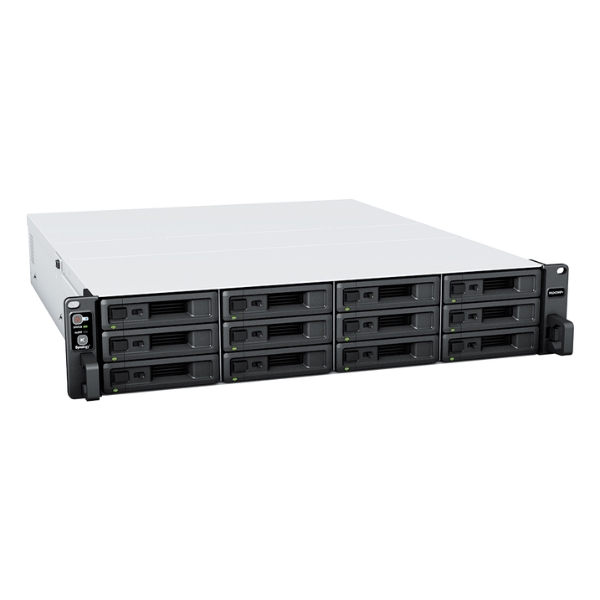

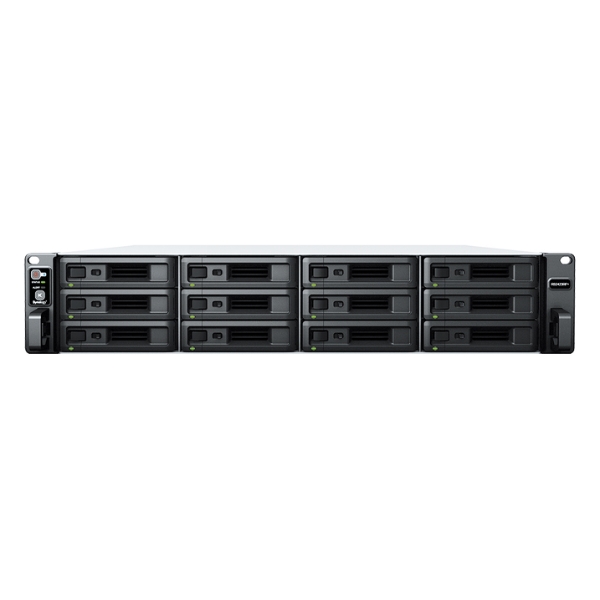

Synology RackStation RS2423RP+

Synology RackStation RS2423RP+

Additional information

Key Features

The RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput. They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs. 4K Random IOPS

Business-ready : Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.
Flexible configuration : Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.
Versatile applications :Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.

Specifications

CPU

CPU Model	CPU Quantity	CPU Core	CPU Architecture	CPU Frequency	Hardware Encryption Engine
AMD Ryzen V1780B	1	4	64-bit	3.35 (base)/3.6 (turbo) GHz	Yes

Memory

System Memory	Memory Module Pre-installed	Total Memory Slots	Maximum Memory Capacity
8 GB DDR4 ECC UDIMM	8 GB (8 GB x 1)	2	32 GB (16 GB x 2)

Storage

Drive Bays	Maximum Drive Bays with Expansion Unit	Compatible Drive Type* (See all supported drives)	Hot Swappable Drive*
12	24 (RX1223RP x 1)	3.5″ SATA HDD/2.5″ SATA SSD	Yes

External Ports

RJ-45 1GbE LAN Port	RJ-45 10GbE LAN Port	USB 3.2 Gen 1 Port*	Expansion Port	Expansion Port Type
2	1	2	1	Mini-SAS HD

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

Appearance

Form Factor (RU)	Size (Height x Width x Depth)	Weight	Rack Installation Support*
2U	88 mm x 482 mm x 578 mm	11.9 kg	4-post 19″ rack (Synology Rail Kit – RKS-02)

Others

417.48 watts (Access 145.8 watts (HDD Hibernation)1425.45 BTU/hr (Access)234.35 BTU/hr (Access)/118.67 BTU/hr (HDD Hibernation)

System Fan	Fan Speed Mode	Easy Replacement System Fan	Power Recovery	Noise Level*	Scheduled Power On / Off	Wake on LAN / WAN	Power Supply Unit / Adapter	Redundant Power Supply	AC Input Power Voltage	Power Frequency	Power Consumption	British Thermal Unit
60 mm x 60 mm x 3 pcs	Full-Speed Mode/ Cool Mode/ Quiet Mode	Yes	Yes	56.2 dB(A)	Yes	Yes	350 watts	Yes	100V to 240V AC	50/60 Hz, Single Phase	114.86 watts (Access), 42.33 watts (HDD Hibernation)	392.18 BTU/hr (Access), 144.53 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature	Storage Temperature	Relative Humidity
0°C to 35°C (32°F to 95°F)	-20°C to 60°C (-5°F to 140°F)	5% to 95% RH

Certification

FCC/ CE/ BSMI/ VCCI/ RCM/ EAC/ CCC/ KC/ UKCA/ UL

Warranty

3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus

Environment

RoHS Compliant

Packaging Content

Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1

Optional Accessories

DDR4 ECC UDIMM: D4EU01-8G/D4EU01-16G
Expansion Units: RX1223RP
Enterprise Series 3.5″ SATA HDD: HAT5300 Series
Plus Series 3.5″ SATA HDD: HAT3300 Series
Enterprise Series 2.5″ SATA SSD: SAT5200 Series
M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G30-F2
10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
Rail Kit Sliding: RKS-02

Overview

Solid Performance

Over 3,500/1,700 MB/s sequential read/write throughput supports office-wide applications.

On-Demand Expansion

Scale up to 24 drive bays and 432 TB of raw storage with one Synology RX1223RP Expansion Unit.

Comprehensive Backups

Protect your IT infrastructure with license-free solutions
for backup, replication, and recovery.

Availability Safeguards

Hot-swappable drives, online volume expansion, dual
power supplies (RS2423RP+), and high-availability
clustering help keep services online.

Designed for reliability

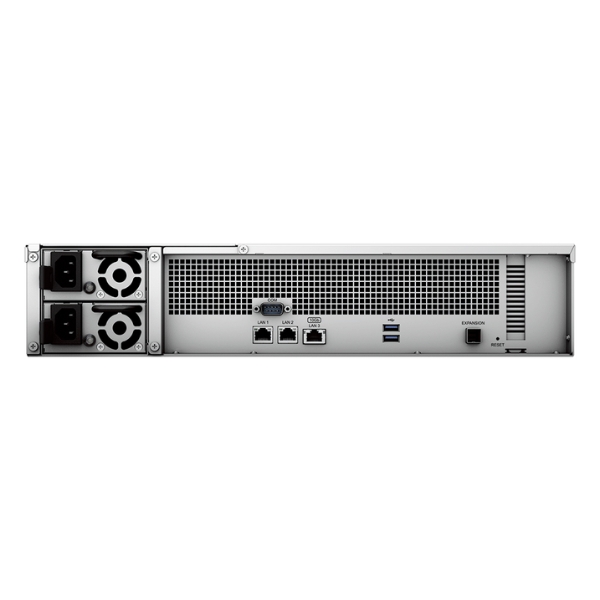

The RS2423RP+ and RS2423+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports.

Extra protection with Extended Warranty Plus

Extend the standard 3-year hardware warranty8 of your DS1522+ with 2 more years of Synology-certified support.
