i3
Series

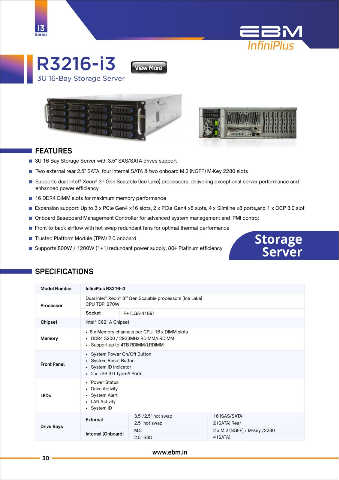

R3216-i3

3U 16-Bay Storage Server

FEATURES
3U 16-Bay Storage Server with 3.5" SAS/SATA drives support

Two external rear 2.5" SATA, four internal SATA & two onboard M.2 (NGFF) M-Key 2280 slots
Supports dual Intel® Xeon® 3 Gen Scalable (Ice Lake) processors, delivering exceptional server performance and
rd
enhanced power efficiency
16 DDR4 DIMM slots for maximum memory performance
Expansion support: Up to 3 x PCle Gen4 x16 slots, 2 x PCle Gen4 x8 slots, 4 x Slimline x8 ports,and 1 x OCP 3.0 slot
Onboard Baseboard Management Controller for advanced system management and IPMI control
Front-to-back airflow with hot-swap redundant fans for optimal thermal performance
Storage
Trusted Platform Module (TPM) 2.0 onboard
Supports 800W / 1200W (1+1) redundant power supply, 80+ Platinum efficiency
Server

SPECIFICATIONS

Model Number InfiniPlus R3216-i3
rd
Dual Intel® Xeon® 3 Gen Scalable processors (Ice Lake)
Processor CPU TDP: 270W
Socket P+ (LGA-4189)
Chipset Intel® C621A Chipset
• 8 x Memory channels per CPU; 16 x DIMM slots

Memory • DDR4 3200 / 2933MHz RDIMM/LRDIMM
• Support up to 4TB RDIMM/LRDIMM
• System Power On/Off Button
• System Reset Button
Front Panel
• System ID Indicator
• 2 x USB 3.0 Type-A Ports
• Power Status
• Drive Activity

LEDs • System Alert
• LAN Activity
• System ID
3.5"/2.5" hot swap 16 (SAS/SATA)
External
Drive Bays 2.5" hot swap 2 (SATA) Rear
Internal (Onboard) M.2 2 x M.2 (NGFF) / M-Key /2280
2.5" SSD 4 (SATA)

www.ebm.in
30
