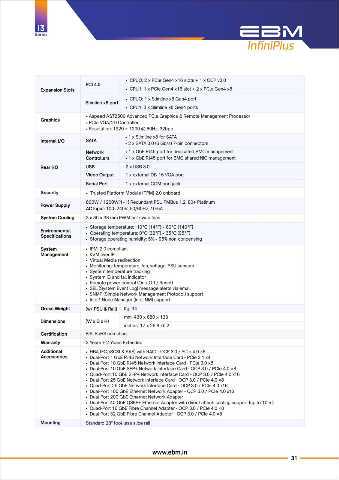

Page 35 - EBM Final Catalogue.cdr

i3
Series

• CPUO: 2 x PCle Gen4 x16 slots + 1 x OCP v3.0
PCI 4.0
Expansion Slots • CPU1: 1 x PCle Gen4 x16 slot + 2 x PCle Gen4 x8
• CPUO: 1 x Slimline x8 Gen4 port
Slimline x8 port
• CPU1: 3 x Slimline x8 Gen4 ports
• Aspeed AST2500 Advanced PCle Graphics & Remote Management Processor
Graphics
• PCle VGA/2D Controller
• Resolution: 1920 × 1200 @ 60Hz, 32bpp
• 1 x Slimline x8 for SATA
Internal I/O SATA • 2 x SATA 3.0 (6 Gb/s) 7-pin connectors

Network • 1 x GbE RJ45 port for dedicated BMC management
Controllers • 1 x GbE RJ45 port for BMC shared NIC management
Rear I/O USB 2 x USB 3.0
Video Output 1 x external DB-15 VGA port
Serial Port 1 x external COM port jack
Security • Trusted Platform Module (TPM) 2.0 onboard
800W / 1200W(1+1) Redundant PSU PMBus 1.2, 80+ Platinum
Power Supply
AC Input: 100~240V, 50/60Hz, 10-5A
System Cooling 3 x 80 x 38 mm PWM hot swap fans
• Storage temperature: -10°C (14°F) ~ 60°C (140°F)
Environmental • Operating temperature: 0°C (32°F) ~ 35°C (95°F)
Specifications
• Storage operating humidity: 5% ~ 95% non-condensing
System • IPMI 2.0 compliant
Management • KVM over IP

• Virtual Media redirection
• Monitoring: temperature, fan, voltage, PSU sensors

• System temperature tracking
• System ID and fail indicator
• Remote power control (On / Off / Reset)
• SEL (System Event Log) message alerts via email
• SNMP (Simple Network Management Protocol) support
• Intel® Node Manager (Intel NM) support
Gross Weight (w/ PSU & Rail) Kg: 34
mm: 430 x 680 x 133
Dimensions (W x D x H)
inches: 17 x 26.8 x5.2
Certification BIS, RoHS compliant
Warranty 3 Years + 2 Years Extended

Additional • HBA (FC, iSCSI & SAS) with RAID - OCP 3.0 / PCle 4.0 ×8
Accessories • Dual-Port 1 GbE RJ45 Network Interface Card - PCle 2.1 x4

• Dual-Port 10 GbE RJ45 Network Interface Card - PCle 3.0 x8

• Dual-Port 10 GbE SFP+ Network Interface Card - OCP 3.0 / PCle 4.0 ×8

• Quad-Port 10 GbE SFP+ Network Interface Card - OCP 3.0 / PCle 4.0 x16

• Dual-Port 25 GbE Network Interface Card - OCP 3.0 / PCle 4.0 ×8

• Quad-Port 25 GbE Network Interface Card - OCP 3.0 / PCle 4.0 x16

• Dual-Port 100 GbE Ethernet Network Adapter - OCP 3.0 / PCle 4.0 x16

• Dual-Port 200 GbE Ethernet Network Adapter

• Dual-Port 40 GbE QSFP+ Ethernet Adapter with direct attach cabling support (up to 10 m)

• Quad-Port 16 GbE Fibre Channel Adapter - OCP 3.0 / PCle 4.0 ×8

• Dual-Port 32 GbE Fibre Channel Adapter - OCP 3.0 / PCle 4.0 ×8
Mounting Standard 28" tool-less slide rail
