P. 44

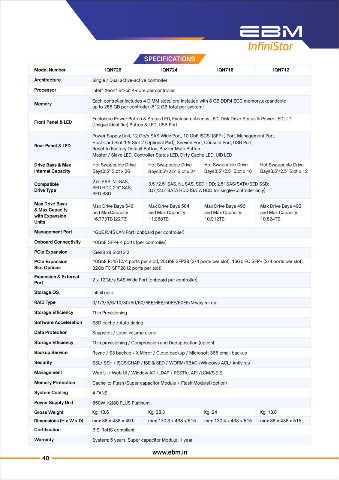

SPECIFICATIONS

             Model Number             IQN726              IQN724             IQN716              IQN712
             Architecture        Single / Dual active-active controller
             Processor           Intel® Xeon® 64-bit 4-core per controller

                                 Each controller includes 4 DIMM slots, pre-installed with 8 GB DDR4 ECC memory,expandable
             Memory
                                 up to 256 GB per controller (512 GB total per system)
                                 Enclosure Power Button & Status LED, Enclosure Access LED, Disk Drive Status & Power LED,UID
             Front Panel & LED
                                 (Unique Identifier) Button & LED, USB Port
                                 Power Supply Unit, 12 Gb/s SAS Wide Port, 10 GbE iSCSI (SFP+) Port, Management Port,
                                 Host Card Slot 1 & Slot 2 (Optional Part), Service Port, Console Port, USB Port,
             Rear Panel & LED
                                 Reset to Factory Default Button, Buzzer Mute Button.
                                 Master / Slave LED, Controller Status LED, Dirty Cache LED, UID LED
             Drive Bays & Max    Hot Swappable Drive   Hot Swappable Drive   Hot Swappable Drive   Hot Swappable Drive
             Internal Capacity   Bays2.5" Slot x 26  Bays3.5"/2.5" Slot x 24  Bays3.5"/2.5" Slot x 16  Bays3.5"/2.5" Slot x 12
                                 2.5" SAS, NL-SAS,
             Compatible                              3.5"/2.5" SAS, NL-SAS, SED HDD; 2.5" SAS/SATA/SED SSD;
             Drive Type          SED HDD 2.5" SAS,   3.5"/2.5" SATA HDD (SATA HDD for single-controller only)
                                 SED SSD
             Max Drive Bays      Max Drive Bays 546   Max Drive Bays 504   Max Drive Bays 496   Max Drive Bays 492
             & Max Capacity      and MaxCapacity     and Max Capacity    and Max Capacity   and Max Capacity
             with Expansion      16,773TB (22TB)     11,088TB            10,912TB           10,824TB
             Units
             Management Port     1GbE RJ45 LAN Port (onboard per controller)
             Onboard Connectivity  10GbE SFP+ 4 ports (per controller)

             PCle Expansion      (Gen3 x8 Slot) x 2
             PCle Expansion      10GbE RJ45 (2/4 ports per slot), 25GbE SFP28 (2/4 ports per slot), 16Gb FC SFP+ (2/4 ports per slot),
             Slot Options        32Gb FC SFP28 (2 ports per slot)
             Expansion & External   2 x 12Gb/s SAS Wide Port (onboard per controller)
             Port

             Storage OS          InfiniLogic
             RAID Type           0/1/3/5/6/10/30/50/60/5EE/6EE/50EE/60EE/N-way mirror
             Storage Efficiency   Thin Provisioning
             Software Acceleration  SSD cache / Auto tiering
             Data Protection     Snapshot / Local volume clone
             Storage Efficiency   Thin provisioning / Compression and Deduplication (option)

             Backup Service      Rsync / S3 backup / X Mirror / Cloud backup / Microsoft 365 email backup
             Security            SSL/ SSH / iSCSICHAP / ISE & SED / WORM/RBAC /Windows ACL/ Antivirus
             Management          Web UI / Web UI / Window AD /LDAP / RESTful API /LCM/S.E.S.
             Memory Protection   Cache-to-Flash (Super capacitor Module + Flash Module) (option)

             System Cooling      4 FANS
             Power Supply Unit   850W ×2(80 PLUS Platinum)
             Gross Weight        Kg: 18.6            Kg: 28.3            Kg: 24             Kg: 18.8
             Dimensions (H x W x D)  mm: 88 x 438 x 491  mm: 170.3 x 438 x 515  mm: 130.4 x 438 x 515  mm: 88 x 438 x 515
             Certification        BIS, RoHS compliant
             Warranty            System: 5 years; Super capacitor Module: 1 year
