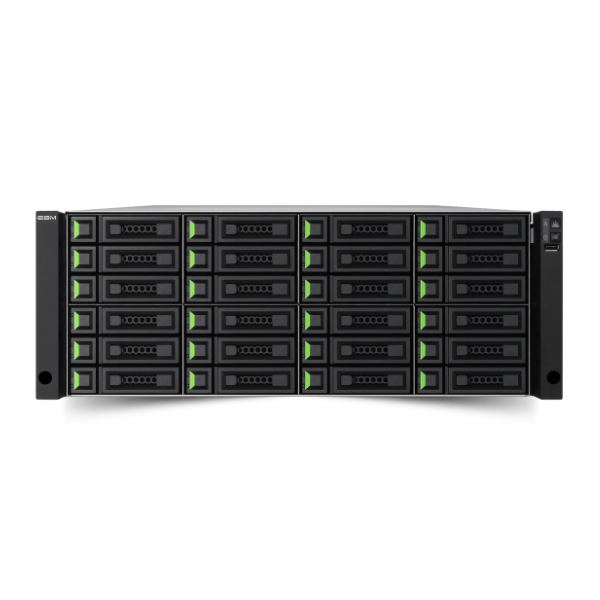

IQN724

IQN724

Additional information

Key Features

Modern Simplicity
  • InfiniLogic storage management system with intuitive GUI for easy setup and maintenance
  • 5-minute deployment – fast installation and data access out of the box
  • orage with multiprotocol support: CIFS/SMB, NFS, FTP, WebDAV, iSCSI, Fibre Channel
  • Seamless cross-InfiniStor platform replication for flexible data mobility
Enquire Now
Model Number
IQN724
Architecture
Single / Dual active-active controller
Processor
Intel® Xeon® 64-bit 4-core per controller
Memory
Each controller includes 4 DIMM slots, pre-installed with 8 GB DDR4 ECC memory,expandable up to 256 GB per controller (512 GB total per system)
Front Panel & LED
Enclosure Power Button & Status LED, Enclosure Access LED, Disk Drive Status & Power LED,UID (Unique Identifier) Button & LED, USB Port
Rear Panel & LED
Power Supply Unit, 12 Gb/s SAS Wide Port, 10 GbE iSCSI (SFP+) Port, Management Port, Host Card Slot 1 & Slot 2 (Optional Part), Service Port, Console Port, USB Port, Reset to Factory Default Button, Buzzer Mute Button. Master / Slave LED, Controller Status LED, Dirty Cache LED, UID LED
Drive Bays & Max Internal Capacity
Hot Swappable Drive Bays3.5″/2.5″ Slot x 24
Compatible Drive Type
  • 3.5″/2.5″ SAS, NL-SAS, SED HDD;
  • 2.5″ SAS/SATA/SED SSD;
  • 3.5″/2.5″ SATA HDD (SATA HDD for single-controller only)
Max Drive Bays & Max Capacity with Expansion Units
Max Drive Bays 504 and Max Capacity 11,088TB
Management Port
1GbE RJ45 LAN Port (onboard per controller)
Onboard Connectivity
10GbE SFP+ 4 ports (per controller)
PCle Expansion
(Gen3 x8 Slot) x 2
PCle Expansion Slot Options
10GbE RJ45 (2/4 ports per slot), 25GbE SFP28 (2/4 ports per slot), 16Gb FC SFP+ (2/4 ports per slot), 32Gb FC SFP28 (2 ports per slot)
Expansion & External Port
2 x 12Gb/s SAS Wide Port (onboard per controller)
Storage OS
InfiniLogic
RAID Typе
0/1/3/5/6/10/30/50/60/5EE/6EE/50EE/60EE/N-way mirror
Storage Efficiency
Thin Provisioning
Software Acceleration
SSD cache / Auto tiering
Data Protection
Snapshot / Local volume clone
Storage Efficiency
Thin provisioning / Compression and Deduplication (option)
Backup Service
Rsync / S3 backup / X Mirror / Cloud backup / Microsoft 365 email backup
Security
SSL/ SSH / iSCSICHAP / ISE & SED / WORM/RBAC /Windows ACL/ Antivirus
Management
Web UI / Web UI / Window AD /LDAP / RESTful API /LCM/S.E.S.
Memory Protection
Cache-to-Flash (Super capacitor Module + Flash Module) (option)
System Cooling
4 FANS
Power Supply Unit
850W ×2(80 PLUS Platinum)
Gross Weight
Kg: 28.3
Dimensions (H x W x D)
Certification
BIS, ROHS compliant
Warranty
  • System: 5 years
  • Super capacitor Module: 1 year

Enterprise Reliability & High Availability

  • Dual active-active controller architecture with seamless failover/failback
  • Designed for 99.9999% availability with fully redundant hardware
    (controllers, power, cooling, fans)
  • Non-disruptive firmware upgrades for continuous data service
  • Predictive drive health monitoring with early alerts
  • Cache-to-flash protection ensures in-flight data safety during unexpected power loss
  • 5-year limited warranty ensures enterprise-grade reliability

Flexible Expansion & Connectivity

  • Built-in 8 x 10GbE SFP+ ports per system (dual controller), scalable to 24 host ports
  • Flexible host connectivity: iSCSI, Fibre Channel (16G/32G), 25GbE, & SAS expansion
    ports
  • Outstanding scalability with up to 546 drives and 16.7 PB raw capacity
  • Wake-on-SAS enables remote power on/off for expansion enclosures, reducing
    energy use

Storage Efficiency & Performance

  • Powered by Intel® Xeon® quad-core processors with expandable memory up to
    256 GB per controller
  • Hybrid flash architecture with SSD caching, auto-tiering, and RDMA acceleration
  • Thin provisioning with space reclamation for optimized storage utilization
  • Advanced storage efficiency: inline compression and deduplication (optional)
  • Comprehensive RAID support: RAID 0/1/5/6/10/50/60/5EE/6EE/50EE/60EE

Data Protection & Backup Services

  • Snapshots with quick restore and recycle bin functionality
  • Local & remote replication (asynchronous + synchronous option)
  • Integrated backup options: Rsync, S3 object backup, cloud backup
  • Microsoft 365 email backup support for SaaS protection
  • WORM (Write Once Read Many) for compliance-ready immutable storage

Security & Access Control

  • Multi-layer protection: SSL, SSH, CHAP, RBAC, Windows ACL, antivirus
  • Support for SED (Self-Encrypting Drives) and ISE for hardware-based encryption
  • Role-based access control with fine-grained permissions
  • Secure HTTPS/RESTful API-based management for safe remote operations

Smart Management with InfiniLogic

  • Real-time monitoring and intuitive dashboard with integrated reporting
  • Unified web GUI, Windows AD/LDAP support, and RESTful API for seamless
    integration
  • Group/batch operations for simplified large-scale management
  • Integrated S.E.S. and LCM support for streamlined hardware maintenance

Versatile Use Cases

  • File sharing & collaboration for SMBs and enterprises
  • Virtualization & container environments (VMware, Hyper-V, KVM, Docker)
  • Video & media production requiring high throughput NAS access
  • Enterprise backup and disaster recovery
  • Surveillance storage with high density and scalability

InfiniStor 700

Download Datasheet
