G5
Series

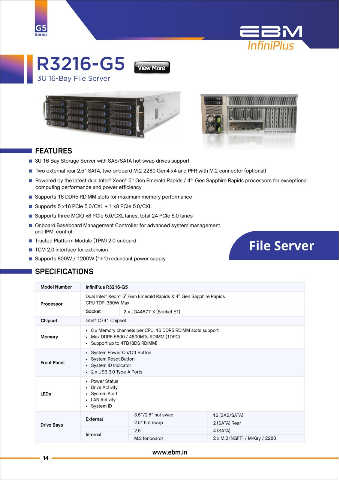

R3216-G5

3U 16-Bay File Server

FEATURES
3U 16-Bay Storage Server with SAS/SATA hot-swap drives support

Two external rear 2.5” SATA, two onboard M.2 2280 Gen4 x4 and PFR with M.2 connector (optional)
Powered by the latest dual Intel® Xeon® 5 Gen Emerald Rapids / 4 Gen Sapphire Rapids processors for exceptional
th
th
computing performance and power efficiency
Supports 16 DDR5 RDIMM slots for maximum memory performance
Supports 5 x16 PCIe 5.0/CXL + 1 x8 PCIe 5.0/CXL

Supports three MCIO x8 PCIe 5.0/CXL lanes, total 24 PCIe 5.0 lanes
Onboard Baseboard Management Controller for advanced system management
and IPMI control
Trusted Platform Module (TPM) 2.0 onboard
TCM 2.0 interface for extension File Server
Supports 800W / 1200W (1+1) redundant power supply
SPECIFICATIONS

Model Number InfiniPlus R3216-G5
th
Dual Intel® Xeon® 5 Gen Emerald Rapids & 4 Gen Sapphire Rapids
th
Processor CPU TDP: 350W Max
Socket 2 × LGA4677-X (Socket E1)
Chipset Intel® C741 Chipset
• 8 x Memory channels per CPU; 16 DDR5 RDIMM slots support

Memory • Max DDR5 5600 / 4800MTs RDIMM (1DPC)
• Support up to 4TB (3DS RDIMM)
• System Power On/Off Button
• System Reset Button
Front Panel
• System ID Indicator
• 2 x USB 3.0 Type-A Ports
• P ower Status

• Drive Activity
LEDs • S ystem Alert
• LAN Activity
• S ystem ID
3.5”/2.5” hot swap 16 (SAS/SATA)
External
Drive Bays 2.5” hot swap 2 (SATA) Rear
2.5" 4 (SATA)
Internal
M.2 (onboard) 2 x M.2 (NGFF) / M-Key / 2280
