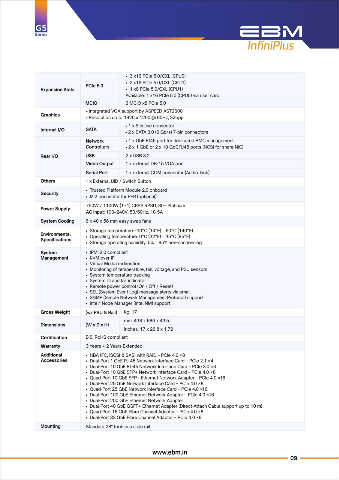

Page 13 - EBM Final Catalogue.cdr

G5
Series

• 3 x16 PCIe 5.0/CXL (CPU0)
• 2 x16 PCIe 5.0/CXL (CPU1)
PCIe 5.0
Expansion Slots • 1 x8 PCIe 5.0/CXL (CPU1)
Available: 1 x16 PCIe 5.0 (CPU0) via riser card
MCIO 3 MCIO x8 PCIe 5.0
• Integrated VGA support by ASPEED AST2600
Graphics
• Resolution up to 1920 x 1200 @ 60Hz, 32bpp
• 1 x Slimline connector
Internal I/O SATA
• 2 x SATA 3.0 (6 Gb/s) 7-pin connectors
Network • 1 x GbE RJ45 port for dedicated BMC management
Controllers • 2 x 1 GbE or 2 x 10 GbE RJ45 ports (NCSI for share NIC)
Rear I/O USB 2 x USB 3.2
Video Output 1 x external DB-15 VGA port
Serial Port 1 x external COM connector (Audio Jack)
Others 1 x External UID / Switch Button
• T rusted Platform Module 2.0 onboard
Security
• M.2 connector for PFR (optional)

750W / 1100W (1+1) CRPS RPSU, 80+ Platinum
Power Supply
AC Input: 100~240V, 50/60Hz, 10-5A
System Cooling 6 x 40 x 56 mm easy swap fans
• Storage temperature: -10°C (14°F) ~ 60°C (140°F)
Environmental • Operating temperature: 0°C (32°F) ~ 35°C (95°F)
Specifications
• Storage operating humidity: 5% ~ 95% non-condensing
System • IPMI 2.0 compliant
Management • K VM over IP

• Virtual Media redirection

• Monitoring of temperature, fan, voltage, and PSU sensors
• System temperature tracking
• System ID and fail indicator
• Remote power control (On / Off / Reset)
• SEL (System Event Log) message alerts via email
• SNMP (Simple Network Management Protocol) support
• Intel® Node Manager (Intel NM) support
Gross Weight (w/ PSU & Rail) Kg: 17
mm: 438 x 680 x 43.5
Dimensions (W x D x H)
inches: 17 x 26.8 x 1.72
Certification BIS, RoHS compliant
Warranty 3 Years + 2 Years Extended

Additional • HBA (FC, iSCSI & SAS) with RAID – PCIe 4.0 ×8
Accessories • Dual-Port 1 GbE RJ-45 Network Interface Card – PCIe 2.1 ×4

• Dual-Port 10 GbE RJ-45 Network Interface Card – PCIe 3.0 ×8

• Dual-Port 10 GbE SFP+ Network Interface Card – PCIe 4.0 ×8

• Quad-Port 10 GbE SFP+ Ethernet Network Adapter – PCIe 4.0 ×16

• Dual-Port 25 GbE Network Interface Card – PCIe 4.0 ×8
• Quad-Port 25 GbE Network Interface Card – PCIe 4.0 ×16

• Dual-Port 100 GbE Ethernet Network Adapter – PCIe 4.0 ×16

• Dual-Port 200 GbE Ethernet Network Adapter

• Dual-Port 40 GbE QSFP+ Ethernet Adapter (Direct-Attach Cable support up to 10 m)

• Quad-Port 16 GbE Fibre Channel Adapter – PCIe 4.0 ×8

• Dual-Port 32 GbE Fibre Channel Adapter – PCIe 4.0 ×8
Mounting Standard 28" tool-less slide rail
www.ebm.in
09
