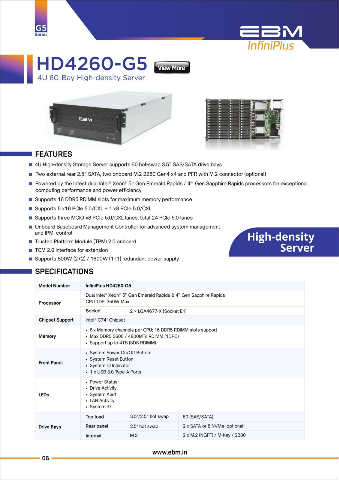

Page 10 - EBM Final Catalogue.cdr

G5
Series
Series

HD4260-G5

4U 60-Bay High-density Server

FEATURES
4U High-density Storage Server supports 60 hot-swap 3.5” SAS/SATA drive bays

Two external rear 2.5” SATA, two onboard M.2 2280 Gen4 x4 and PFR with M.2 connector (optional)
Powered by the latest dual Intel® Xeon® 5 Gen Emerald Rapids / 4 Gen Sapphire Rapids processors for exceptional
th
th
computing performance and power efficiency
Supports 16 DDR5 RDIMM slots for maximum memory performance
Supports 5 x16 PCIe 5.0/CXL + 1 x8 PCIe 5.0/CXL
Supports three MCIO x8 PCIe 5.0/CXL lanes, total 24 PCIe 5.0 lanes
Onboard Baseboard Management Controller for advanced system management
and IPMI control
Trusted Platform Module (TPM) 2.0 onboard High-density
TCM 2.0 interface for extension Server
Supports 800W (2+2) / 1600W (1+1) redundant power supply
SPECIFICATIONS

Model Number InfiniPlus HD4260-G5
th
th
Dual Intel® Xeon® 5 Gen Emerald Rapids & 4 Gen Sapphire Rapids
Processor CPU TDP: 350W Max
Socket 2 × LGA4677-X (Socket E1)
Chipset Support Intel® C741Chipset
• 8 x Memory channels per CPU; 16 DDR5 RDIMM slots support

Memory • Max DDR5 5600 / 4800MTs RDIMM (1DPC)
• Support up to 4TB (3DS RDIMM)
• System Power On/Off Button
• System Reset Button
Front Panel
• System ID Indicator
• 1 x USB 3.0 Type-A Ports
• Power Status
• Drive Activity

LEDs • S ystem Alert
• LAN Activity
• System ID
Top-load 3.5"/2.5” hot swap 60 (SAS/SATA)
Drive Bays Rear panel 2.5" hot swap 2 x SATA or 8 NVMe (optional)
Internal M.2 2 x M.2 (NGFF) / M-Key / 2280

www.ebm.in
06
